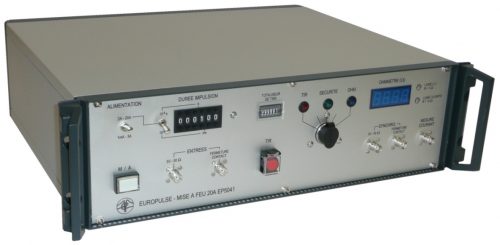

Current supply : 2 external DC sources (1 mA to 3 A, 2 A to 20 A)
Safety key : shot, safety, ohmmeter
Triggering : pulse 5 V (50Ω)
short circuit,
push button
Ohmmeter : 0.1 to 1999 Ω (3 ranges)
Outputs : current measurement
pulses synchronous
Switched current
Icrest : 20 A (40 A/200 ms)
Rinternal ≤ 100 mΩ
Ton < 5 µs (I=10A, load=2,2 Ω NI)
Tfall < 5 µs (I=10A, load=2,2 Ω NI)
width : 100 µs to 1000 s (10µs, 1ms steps)
Jitter (Δt) < 50 ns
